Reorganize with research folder

2020-03-23 14:59:01 +01:00 · 2020-03-23 14:59:01 +01:00 · 25256e89ba
parent 9e611f56be
commit 25256e89ba
3 changed files with 3 additions and 0 deletions
--- a/research/meetingscheduler.drawio
+++ b/research/meetingscheduler.drawio
--- a/research/meetingscheduler.png
+++ b/research/meetingscheduler.png
--- a/research/research.md
+++ b/research/research.md
@ -7,6 +7,9 @@
 ## Database architecture
 See: https://dbdiagram.io/d/5e769ab14495b02c3b88936f

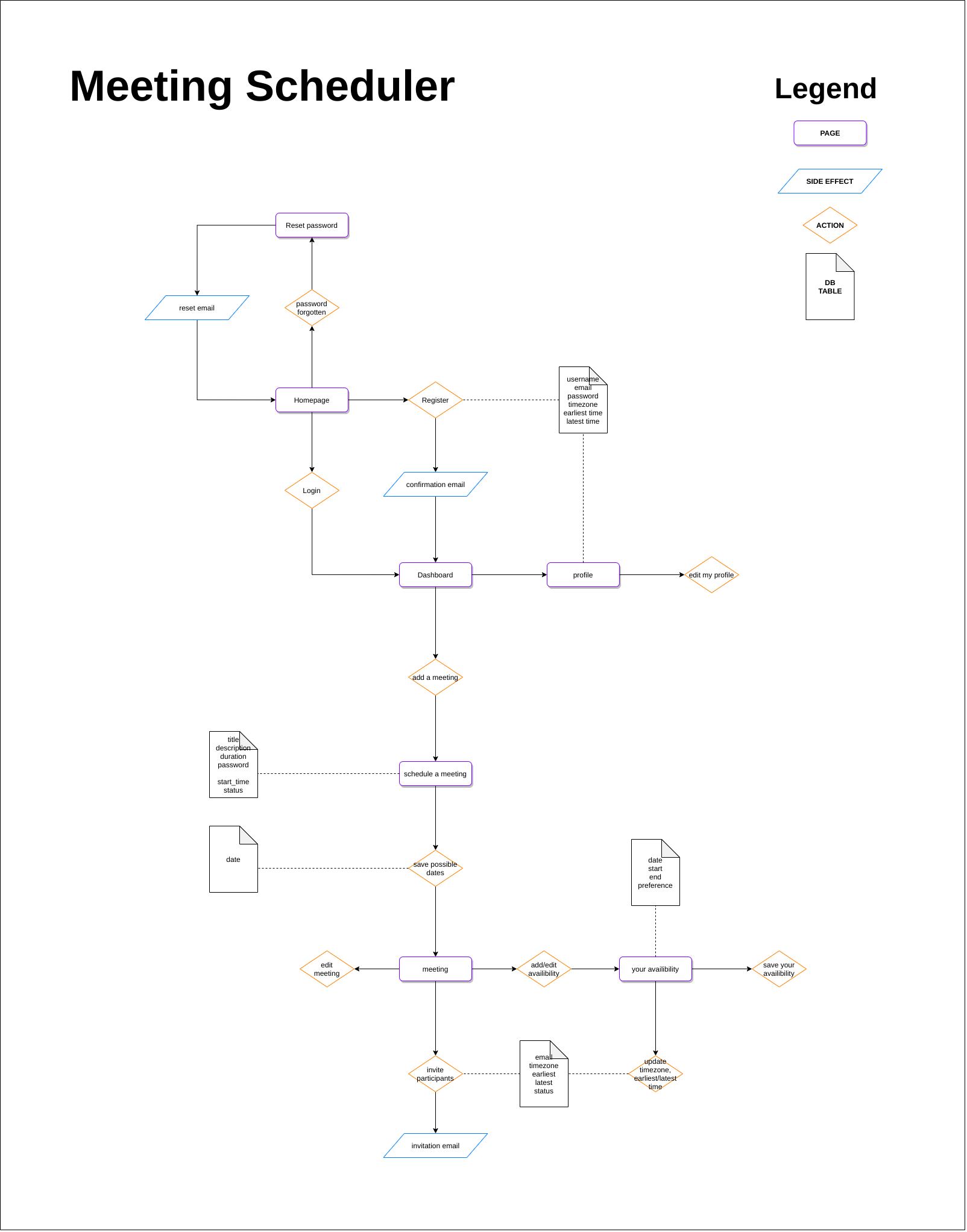

+## Flowchart
+![Meeting Scheduler Flowchart](https://git.armada.digital/rui/meeting-scheduler-backend/src/branch/master/research/meetingscheduler.png "Meeting Scheduler Flowchart")
+
 ## How to deal with date and time in PostgreSQL?
 - use `datetime` datatype without timezone (datetime with timezone is using offset, which doesn't work well with DST)
 - store datetime in UTC
